Fiber Lined Front Loading
Medium Duty Kiln

GEIL offers the ceramicist a front loading Medium Duty Kiln capable of cone 10 oxidation/reduction firing. This model incorporates the same original Downdraft Design with fiber lining. The primary difference between the Medium Duty Kilns and our professional kilns is a lighter-duty form of construction.  This model is equipped with steel casters for complete portability.

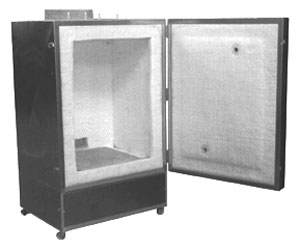

Medium Duty Kiln Model 802


  • Electronic flame safety, 100% Shut Off.
  • Push button automatic spark ignition.
  • Manual control valve.
  • 0-15" water column pressure gauge.
  • DD-1 digital, solid state, electronic controller which functions as a high-limit, on/off soaking controller.



OPTIONAL EQUIPMENT



Specifications - Medium Duty Kiln

Model Number

802

Inside Volume -Cu.Ft.

11

Setting Space-Cu.Ft.

8


Inside Dimension-Inches

W D H
25x22x35

Outside Dimension-Inches

35x40x59

Instrumentation  - (Microprocessor Controller  Optional Equipment)

DD1 Controller

Stacking Height-Inches

35

Temperature Range

0-2400° F.

Shelf Size-Inches Per Level

2-10x20 or 1-20x20

Maximum BTU/HR. Input

130,000

Maximum Gas Consumption CFH

118

Minimum Gas Pressure

4 Inches Water Column Pressure

Gas Line Inlet Inches

1/2

Average Firing Time-Cone 06

2 Hours

Average Firing Time-Cone 10

4 Hours

Approximate Shipping Weight

633 lbs.





Electrical hook-up required on all models. No extra charge for kilns firing with propane gas. Please specify.
Specifications subject to change without notice. Patent 4,531,910
ETL Intertek Certified
