STANDARD
EQUIPMENT
ON ALL GAS KILNS
|
|
|
-
Electronic
flame safety, 100% shut off
-
Push
button automatic spark ignition
-
Manual
control valve
-
0-15"
water column pressure gauge
-
DD-1
digital, solid state, electronic controller
which functions as a high-limit, on/off
soaking controller
|
|
 |
|
Control System
Standard manual control system used on most
GEIL KILNS.
|
| |
|
|
Control
System
Standard manual control system used
on most GEIL Kilns.
|
| |
|
|
DD-1
Digital Electronic Controller
The DD-1 is a high limit, on-off,
solid state electronic controller with a digital
readout and digital set from 0 to 2500� F. When
the controller is set at the “High Limit”
position, it will automatically shut the kiln off
at the set point temperature. The on-off position
functions as a “soaking” controller,
holding the temperature at the set point temperature,
plus or minus 5�.
|
| |
|
|

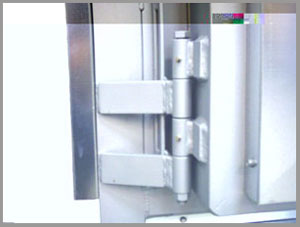

Heavy
Duty Hinge
An exclusive feature on all front
loading GEIL Kilns, this hinge is fully greased
to prevent rusting and reduce wear.
|
|
|

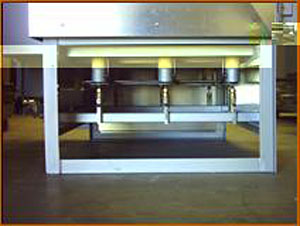

Burner
System
Natural draft, high velocity ceramic
Venturi burners were specifically created and designed
by GEIL Kiln Company for the GEIL Downdraft Design
system and have proven to be quite efficient in
all applications.
|
ALL GAS &
ELECTRIC KILNS INCLUDE:
|
|
|
The
ETL Certification
All GEIL GAS KILNS conform to A.G.A.
STANDARD 1-94 and certified to CSA STANDARD C22.2
NO.3.
All GEIL Electric kilns
conform to UL STANDARD 1-94 and certified to CSA
STANDARD C22.2 #221.
|
NOTE: All individual shelving not ordered with kiln carries
a 10% packing charge. Silicon Carbide Shelving --
Quoted upon request.
Prices effective June 30, 2004 All information and prices
stated on this sheet are subject to change without
notice. All prices F.O.B. Huntington Beach, California
|
|
|
|
|
