Front Loading Electric Kilns |
Hybrid Electric Kilns
The best of both worlds part Brick & part Fiber. Heavy duty welded structural steel frame construction / Bartlett 3 Zone Controller / Built-in vent system / Door Safety Interlock / 6" FiberTop / 4" Fiber Door / 3" insulating fire brick with 1" block insulation back up / Ventilated Shell / Easy Change Element System, Elements simply slide in & out of the side wall. No rods, No inefficient element holders / All models fire to 2380° F (cone 10).
|

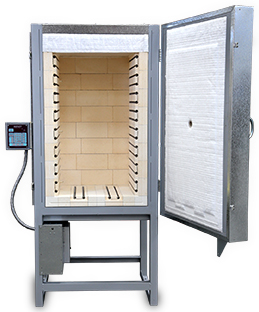

Electric Kiln Model EHW-8
front view inside
|
|
|
|
|
Electric Kiln
Model EHW-12
front view
|
|
|
|
| Specifications - EHW Hybrid Electric
Kilns |
| Model Number |
EHW-8 |
EHW-12 |
EHW-12 RD |
EHW-16 |
| Inside Volume-Cu. Ft. |
8 |
16 |
14 |
21 |
| Setting Space-Cu. Fl. |
5.3 |
12 |
11 |
16 |
| Setting Area-Inches (W D H) |
16 x 16 x 36 |
24 x 24 x 36 |
22 x 24 x 36 |
24 x 24 x 48 |
| Inside Dimension-inches (W D H) |
20 x 19 x 36 |
26.5 x 28 x 36 |
26.5 x 24.75 x 36 |
26.5 x 28 x 49 |
Outside Dimension-inches
(W D H) |
32 x 31.5 x 72 |
39X41X72 |
39 x 37 x 72 |
39 x 41 x 83 |
| Instrumentation |
BARTLETT V6-CF SERIES 700 |
| Stacking Height-Inches |
36 |
36 |
36 |
48 |
| Temperature Range |
0 - 2350F |
0 - 2350F |
0 - 2350F |
0 - 2350F |
| Shelf Size-inches |
1 - 16X16 |
2 - 12x24 |
2 - 11x24 |
2 - 12x24 |
| Voltage |
208V / 240V |
208V/220/240V |
208V/220/240V
(1 phase or 3 phase) |
208V/220/240V |
| Kilowatts |
11 KW |
19KW / 16 KW |
17KW |
25KW |
| Number of Zones |
3 |
3 |
3 |
3 |
| Av. Firing Time-Cone 10 |
10 -13 HOURS |
10-13 HOURS |
10-13 HOURS |
10-13 HOURS |
| App. Shipping Weight |
1,100 LBS |
1,100 LBS |
1,100 LBS |
1,400 LBS |
Brick Electric Kilns
The frame construction and exterior shell of the GEIL Electric Brick Kiln consists of heavy, gauge, structural strength steel. All frames are welded at each joint to provide for maximum strength and durability. Full-width, front-loading doors and the minimal area between the door opening and the setting space facilitates loading and unloading. These fire brick kilns are built with full depth arch construction extending directly to the door opening, providing stacking space to the top of the arch. The 2600° F Insulating Fire Brick backed by high-temperature block insulation constitutes the kiln’s interior. All models will fire to 2380° F (cone 10). The Bartlett Microprocessor Based Programmable Temperature Controller automatically controls each zone as it Ramps or Soaks through the desired program.
Heating Elements
The 10-gauge heating elements are coiled
wire using Kanthal A-1 alloy. The coils are held
in the grooved Insulating Fire Brick using ceramic
tube inserts. Each kiln is designed using Multi-Zone
control. Each zone is controlled using a
Solid
State Relay ( SSR )..

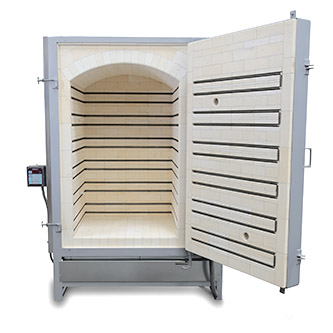

Electric Kiln Model EDLB-30
|
|
Specifications - EDLB Brick Lined Electric
Kilns |
Model Number |
EDLB-16 |
EDLB-18 |
EDLB-20 |
EDLB-24 |
EDLB-30 |
| Inside Volume-Cu. Ft. |
20 |
22 |
24 |
30 |
37 |
| Setting Space-Cu. Fl. |
16 |
18 |
20 |
24 |
30 |
| Setting
Area-Inches |
W D H
28x28x36 |
W D H
28x28x40 |
W D H
28x28x44 |
W D H
32x32x42 |
W D H
32x32x51 |
| Inside Dimension-inches |
31x31x36 |
31x31x36 |
31x31x44 |
36x36x42 |
36x36x51 |
| Outside Dimension-inches |
52x50x72 |
53x50x75 |
52x50x80 |
62x54x81 |
62x54x90 |
| Instrumentation |
(Microprocessor ) Bartlett
V6-CF Series 700 |
| Stacking Height-Inches |
36 |
40 |
44 |
42 |
51 |
| Temperature Range |
2380 F All Models |
| Shelf Size-inches |
2-14x28 |
2-14x28 |
2-14x28 |
4-16x16 |
4-16x16 |
| Voltage |
240
1 PHASE 240/480
|
208
1 PHASE 240/480 |
208
240/480
3 PHASE
|
440/480
3 PHASE |
| Kilowatts |
29 |
29 |
36 |
43 |
51 |
| Number of Zones |
2 |
3 |
3 |
2 |
2 |
| Av. Firing Time-Cone 10 |
Approximately 8 Hours |
Approximately 10 Hours |
| App. Shipping Weight |
2,150 lbs. |
2,500 lbs. |
2.800 lbs. |
3,000 lbs. |
3,400
lbs. |
|
Specifications subject to
change without notice.
ETL
Intertek Certified
updated 5/5/13
|
|
|
|
|
|
