Model: EHW- 8
8 Cubic Ft. Electric Kiln
(Volume: 8 cubic ft. Total Space / Setting Area: 5.3 cubic ft.)

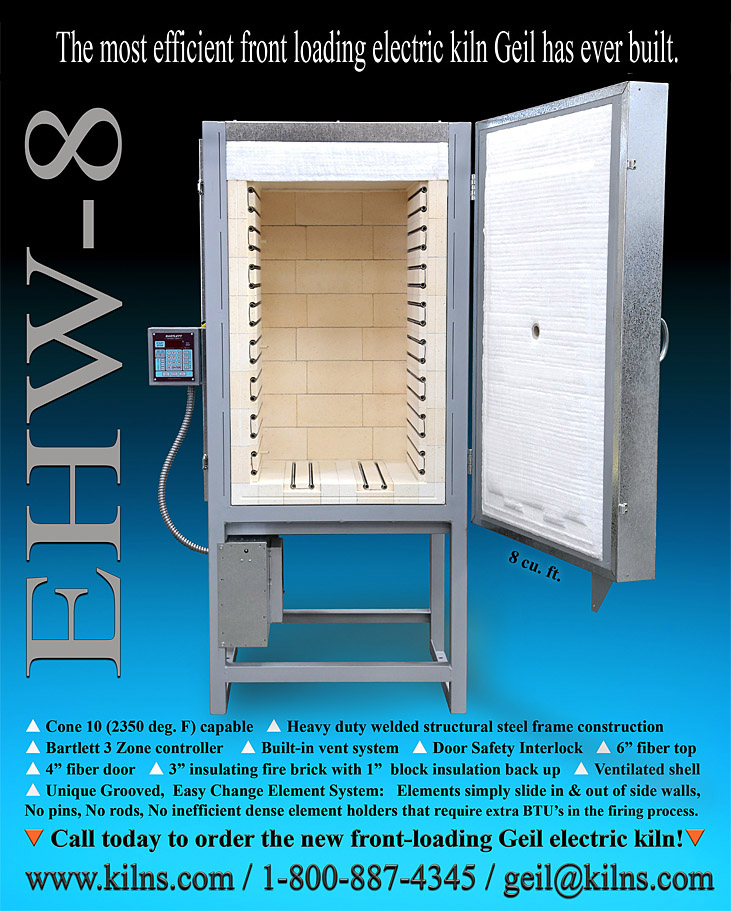

Image Electric Geil electric Kiln model EHW-8 text The most efficient front loading electric kiln Geil has ever built. features and hightlights text Cone 10 2350 deg. F capable, Heavy duty welded structural steel frae construcation, Bartlett 3 Zone controller, Built-in vent system, Door Safety Interlock, 6 inch fiber top, 4 inch fiber door, 3 inch insulatkng fire brick with 1 inch block insulation back up, Bentilated shell, Unique Grooved, Easy Change Element System: Elements simply slide in & out of side walls, no pins, no rods, no inefficient dense element holders that require extra BTU's in the firing process. Call today to order the new front-loading Geil electric kiln! www.kilns.com / 1-800-887-4345 / geil@kilns.com

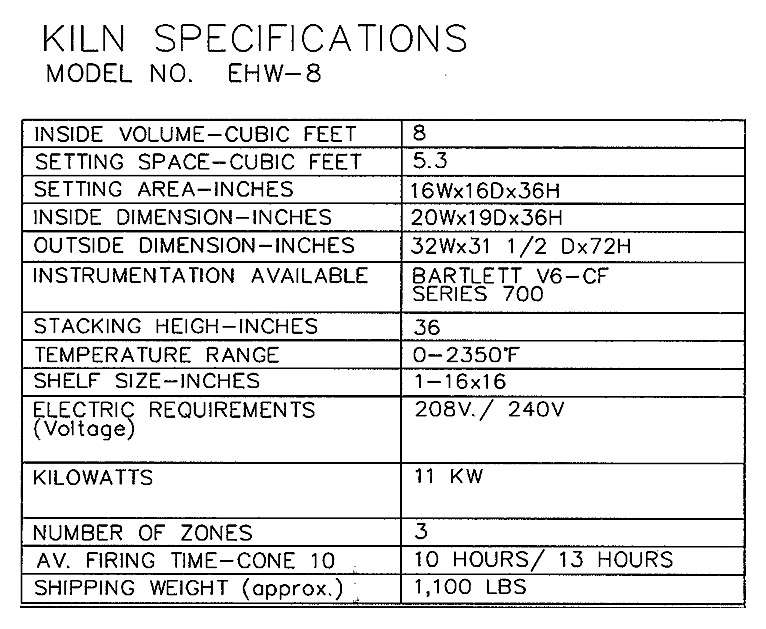

Image EHW-8 kiln specifications, Inside volume-cubic feet - 8, setting space-cubic feet - 5.3, Setting area-inches - 16Wx16Dx36H, Inside dimension-inches - 20Wx19Dx36H, Outside dimension-inches - 32Wx31.5Dx72H, Instrumentation available - Bartlett V6-CF Series 700, Stacking Heigh-Inches - 36, Temperature Range - 0-2350F, Shelf size-inches - 1-16x16, Electric Requirements voltage - 208V / 240V, Kilowatts - 11KW, Number of Zones - 3, AV Firing Time - cone 10 - 10 hours / 13 hours, Shipping weight approx - 1,100 lbs
